Banda transportoare cu separator cu paleta N-CPST - Produs

 MAGURELE  -  România

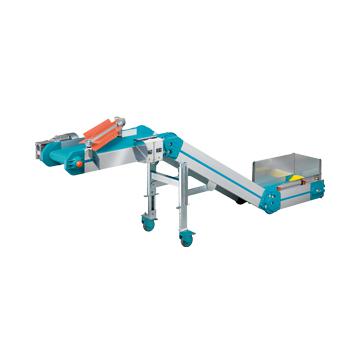

Banda transportoare cu separator cu paleta N-CPST
  • Banda transportoare cu separator cu paleta N-CPST
•Sturdy frame made of primary extrusion aluminium section, Alloy 6060, protected by anodisation treatment thickness 15 micron.
•Standard cut-proof, oil-proof belt, with high grip green PVC covering (ref. Pantone 320); vulcanised belt joint.
•Minimum and maximum temperature resistance of belt -10 �C to +60 �C.
•Standard transmission grou...

Descriere Produs

•Sturdy frame made of primary extrusion aluminium section, Alloy 6060, protected by anodisation treatment thickness 15 micron.
•Standard cut-proof, oil-proof belt, with high grip green PVC covering (ref. Pantone 320); vulcanised belt joint.
•Minimum and maximum temperature resistance of belt -10 �C to +60 �C.
•Standard transmission group of the conveyor consisting of 0.12 kW three-phase, asynchronous motor coupled with worm reduction unit with permanent lubrication.
•Standard transmission group of the separator consisting of 0.09 kW three-phase, asynchronous motor coupled with worm reduction unit with permanent lubrication and torque limiter.
•Fixed standard conveyor speed 3 m/min.
•Conveyor complete with Siemens Start and Stop double switch/motor cut-out (one for the conveyor and one for the separator), with 5 m cable and 4P CE plug (3 phases + ground).
•Standard motor supply voltage 400 Volts/50 Hz.

Pret Produs

Pret nespecificat
